USB A High Speed Signal Quality Test Fixture Set

產品介紹

此組 USB High Speed Signal Quality Test Fixture Set 共包含以下兩組治具：

1. USB-A HS Device SQ Fixture (型號:AUT20132)
2. USB-A HS Host SQ Fixture (型號:AUT20038)

於2020年改良原型號USB-TF-HS-Host-V21及USB-TF-HS-Host-V20，重新設計和製作新治具AUT20132和AUT20038，主要降低SMA損壞的風險，易於更換SMA Connector，提高USB 2.0信號的量測品質。

另外特別將AUT20132 jumper設計改為Switch開關，並將供電連接器接口改為USB Type-C。

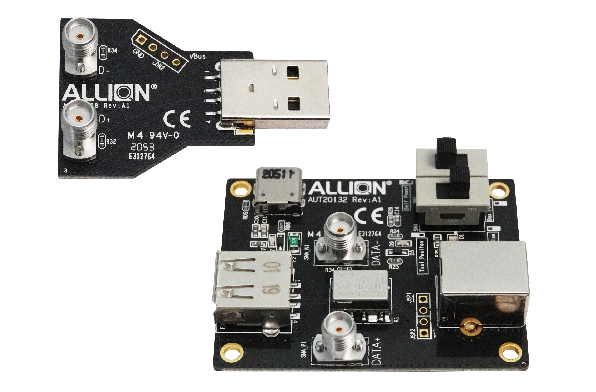

USBA2HSSQ-01

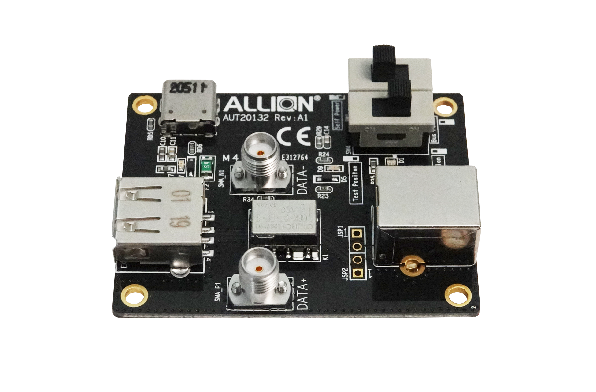

USBA2HSSQ-02

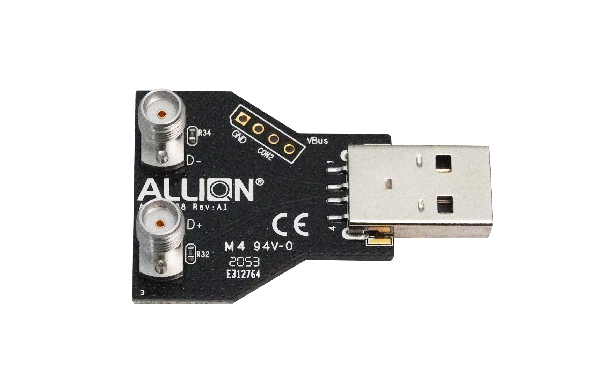

USBA2HSSQ-04

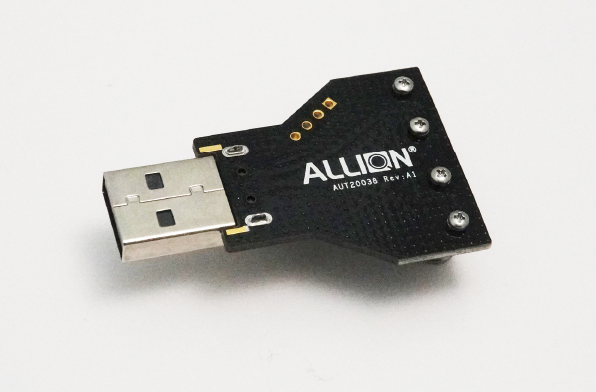

USBA2HSSQ-03

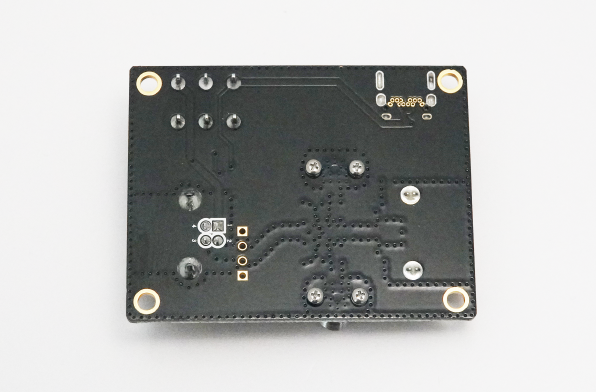

USBA2HSSQ-05

應用範圍

• USB-A HS Device SQ Fixture

1. High-Speed Device Signal Quality Test (EL_2, 4, 5, 6, and 7)
2. 眼圖測試 (Eye Pattern)

• USB-A HS Host SQ Fixture

1. High-Speed Host Quality Test (EL_2, 3, 6, and 7)
2. 眼圖測試 (Eye Pattern)

產品規格

• USB-A HS Device SQ Fixture

1. USB-A Receptacle Connector x1
2. USB-B Receptacle Connector x1
3. SMA Connectors x2
4. Slide Switch for switching Power Source and Initiate/Test Port x2
5. 1×4 Pin Header for other Testing Implementation
6. Dimension: 57.79 mm x 44.96 mm

• USB-A HS Host SQ Fixture

1. USB-A Plug Connector x1
2. SMA Connectors x2
3. 1×4 Pin Header for VBUS & Ground Measurement
4. Dimension: 36.96 mm x 30.96 mm
