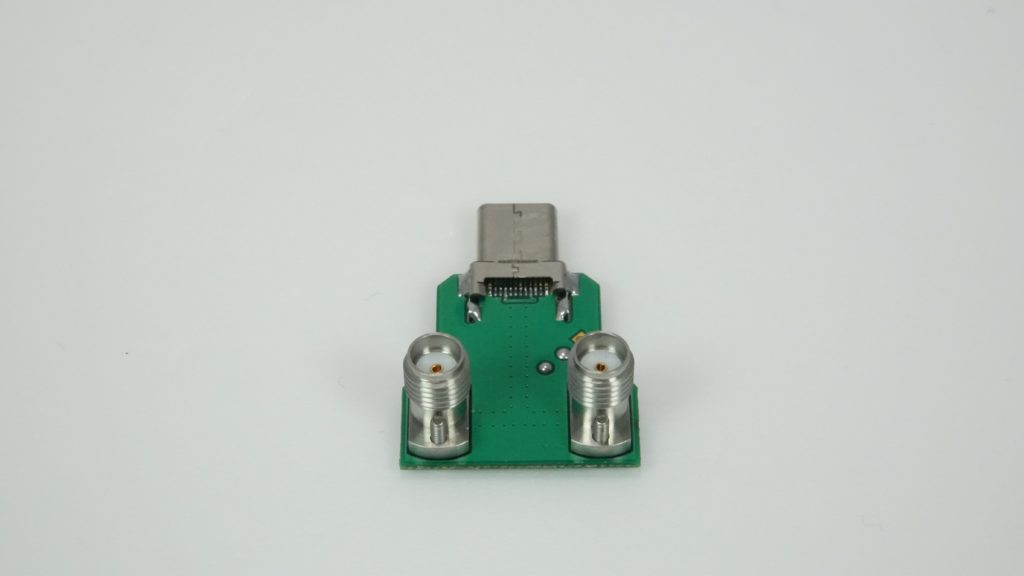

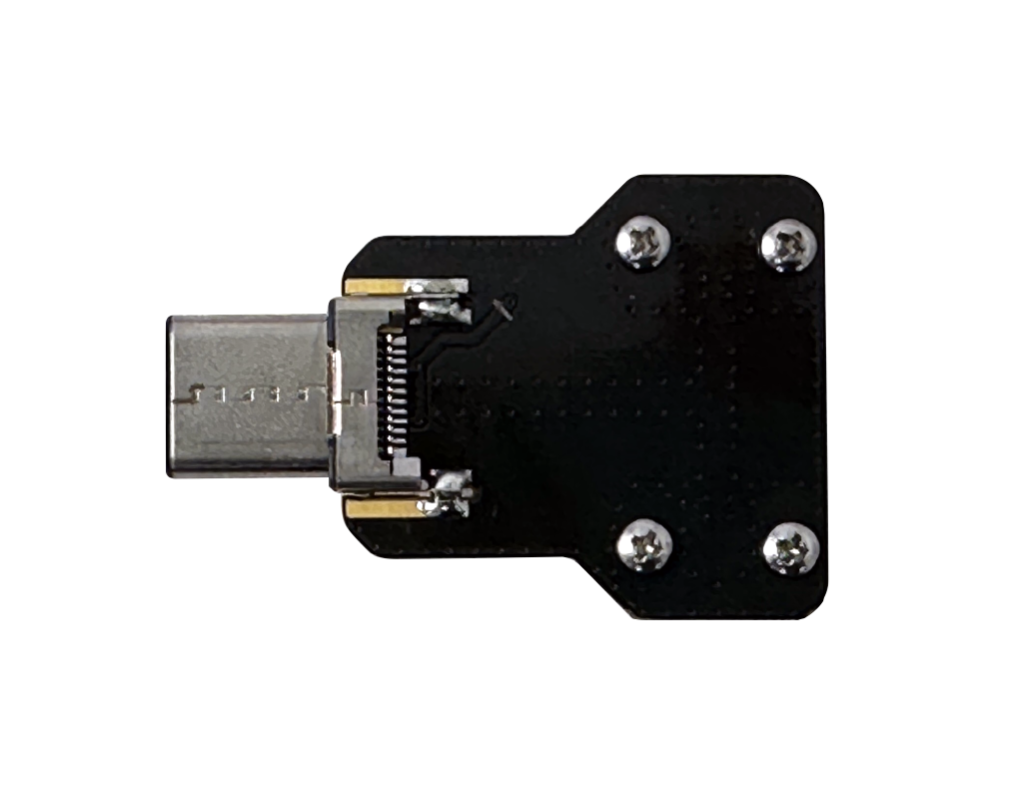

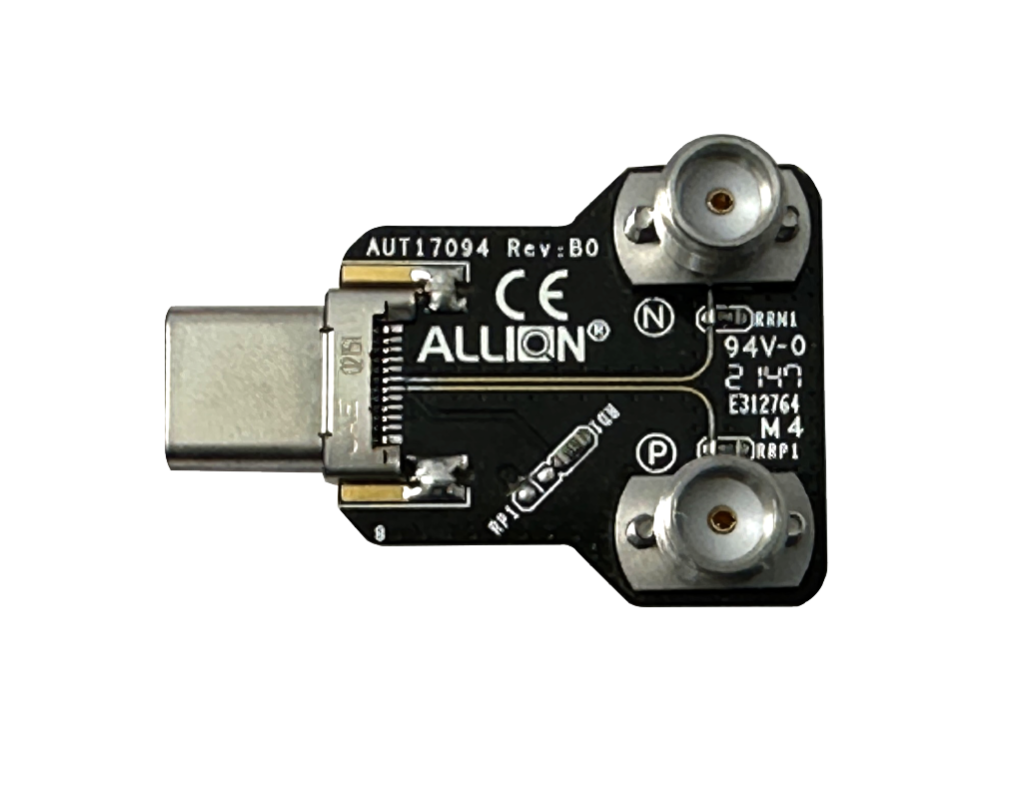

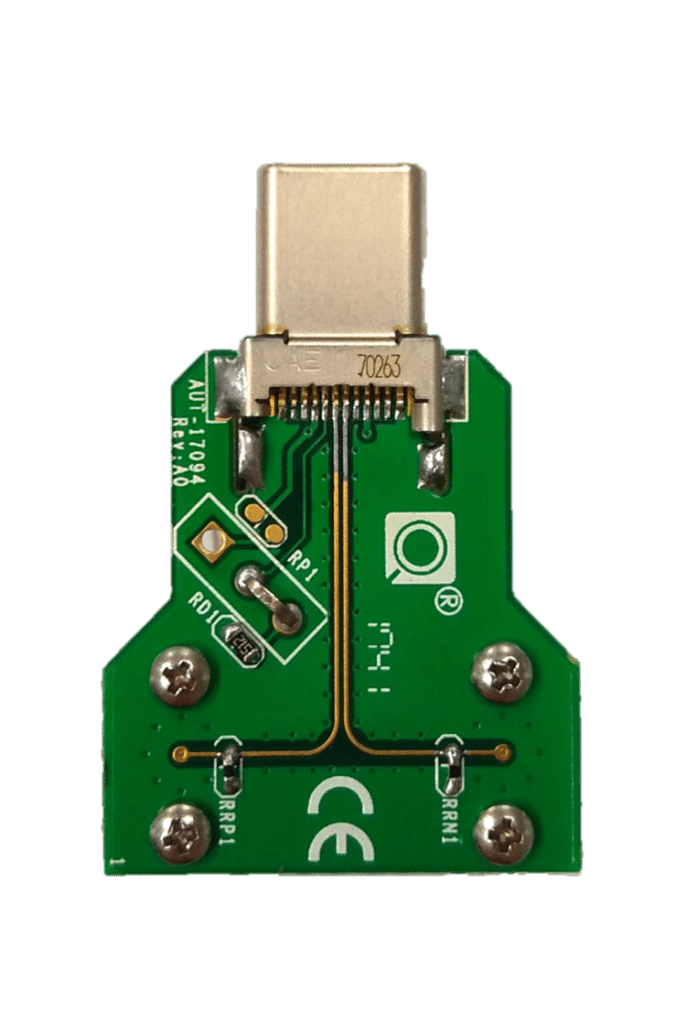

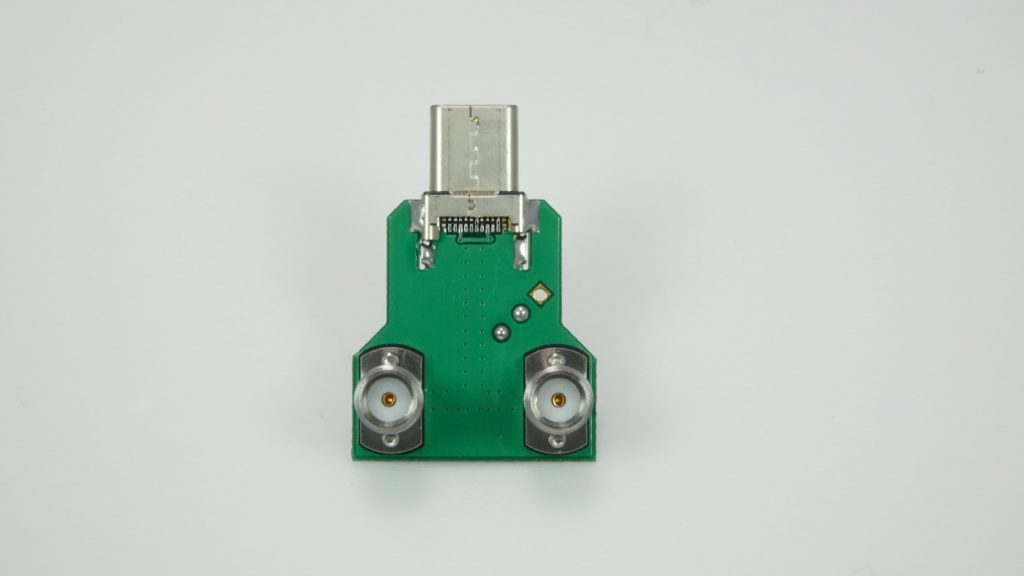

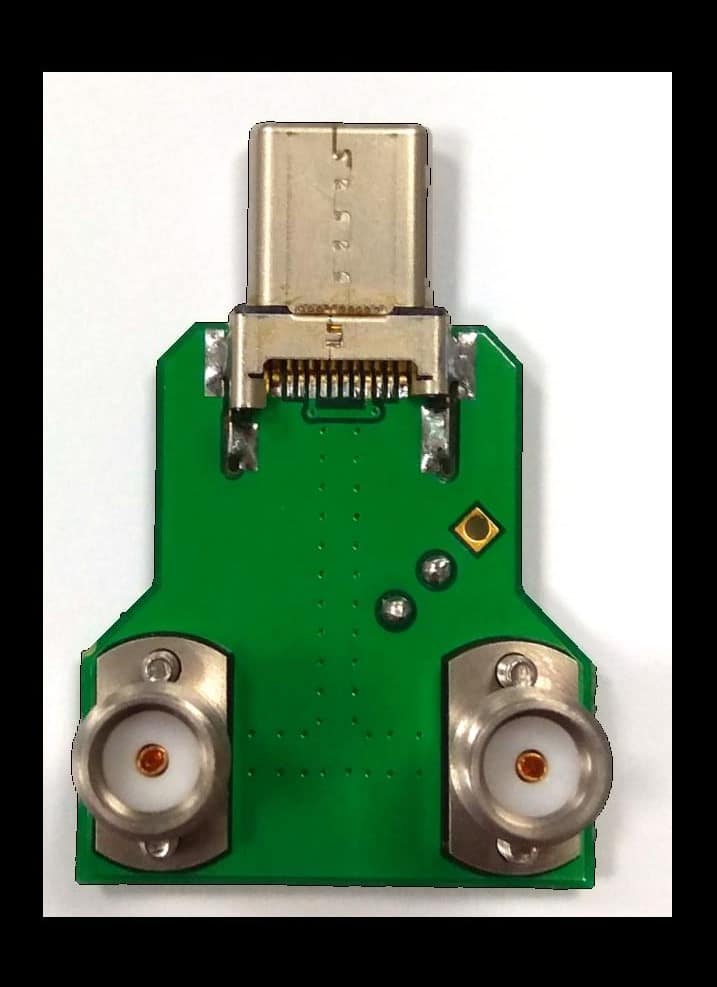

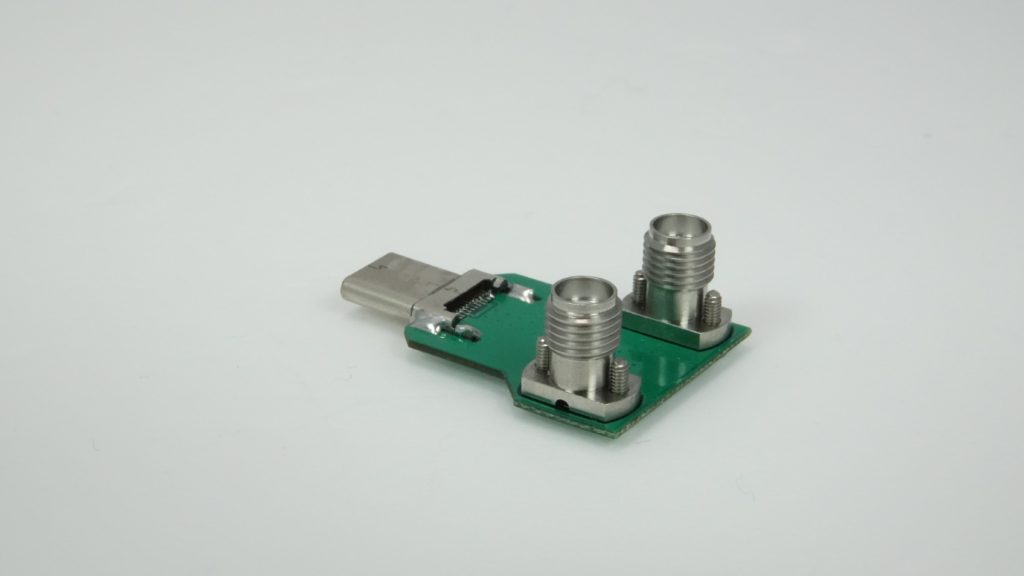

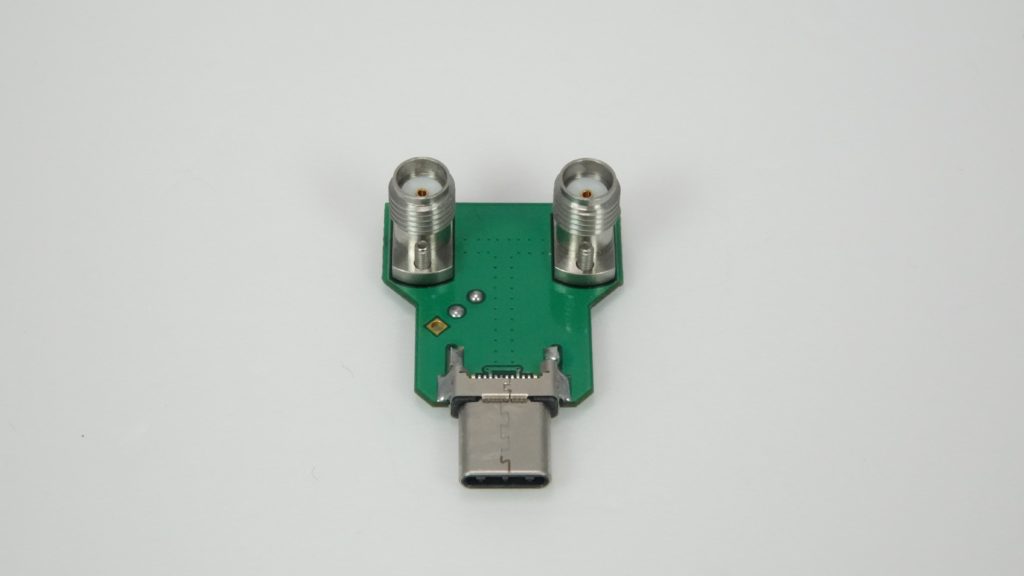

USB-C® 2.0 Plug HS SQ Test Fixture

產品介紹

USB協會為針對USB-C USB2.0 Host /Device Electrical測試而開發的測試治具。

應用範圍

1.USB-C 2.0 Receptacle HS SQ 以及Compliance Parameters測試
2.高速訊號品質量測 (EL_2, EL_3, EL_6; EL_7)
3.Packet Parameters ( EL_21, EL_25, EL_23, EL_22, EL_55)
4.Chirp Timing (EL_33, EL_34, EL_35)
5.Suspend/Resume Timing (EL_39, EL_41)
6.Test J/K, SE0_NAK (EL_8, EL_9)
7.Full Speed訊號品質量測

主要特性

將USB-C® 2.0 Plug 的正反面高速信號轉成SMA接頭g

產品規格

1.USB-C® Full Future Plug Connector.
2.Two SMA Connectors
3.Fix Short Pin for CC1 Pull-Low(Rd)
4.Dimension : 22.5 mm x 24.5 mm

備註

ALLION : USB-C® IOP Test Fixture
