PCIe M.2 CBB6.0 Test Fixture Set

Product Summary

PCIe M.2 CBB6.0 Test Fixture Set

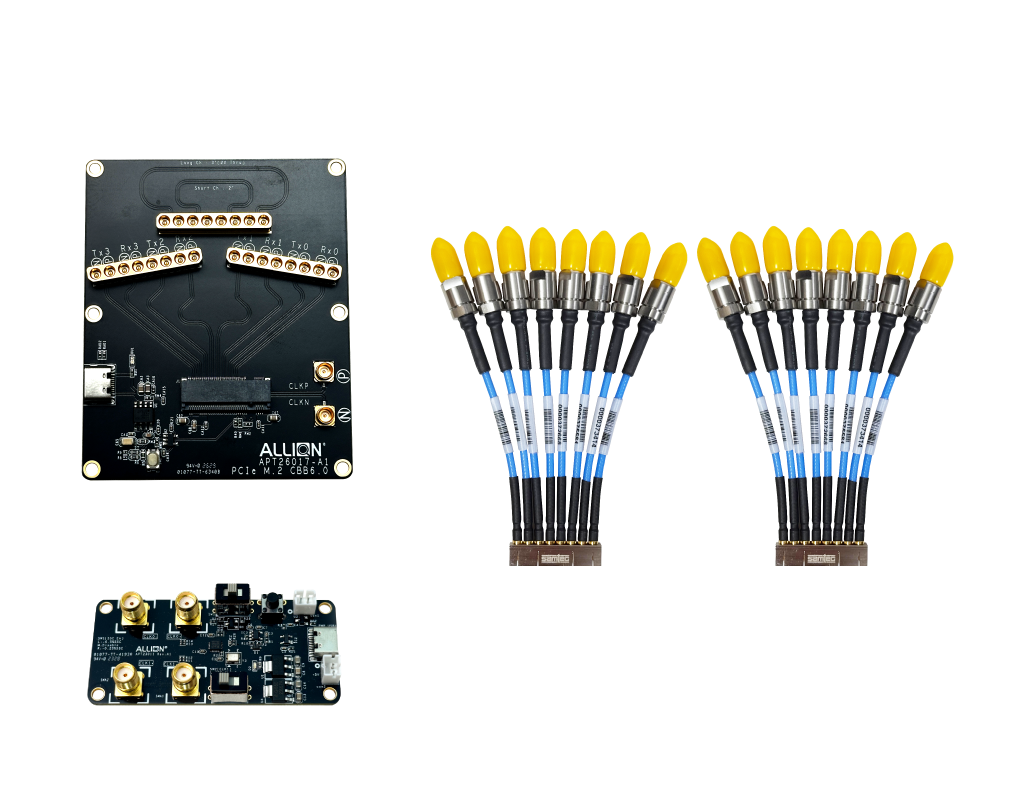

• PCIe M.2 CBB6.0 測試治具套組包含以下項目：

1. PCIe M.2 CBB6.0 Test Fixture (Model Name: APT26017)
2. Allion CMTS Board (Model Name: APT23011)
3. SMPM 1 by 8 Cable Module*2

• 交期為下單後8-10週

Application

• 適用於 PCI Express 裝置與 AIC 擴充卡認證測試 for Tx/Rx (Gen1–Gen6)

Key Feature

• 適用於 M.2 電氣測試 for Tx & Rx
• 強化SMPM連結器設計，最高可支援 50Ghz
• 具彈性的線纜配件，提升安裝便利性
• 提供兩倍校正板 (不包含連接器)

Specification

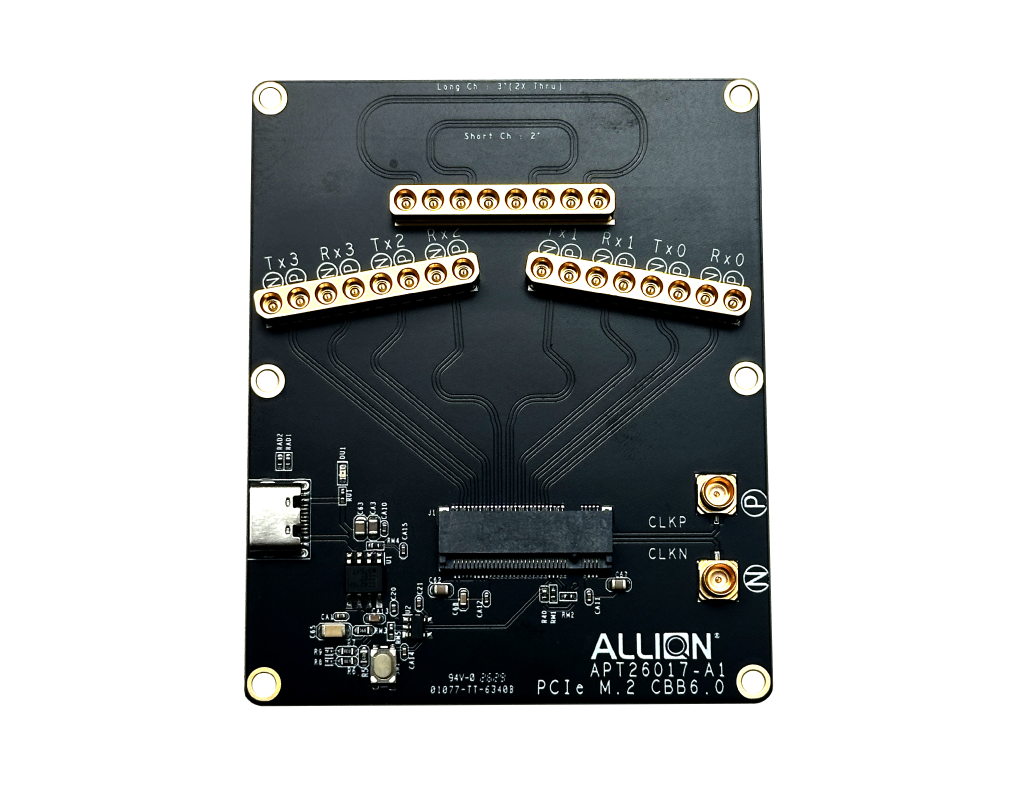

APT26017

• PCIe M.2 M-Key Receptacle Connector
• Two SMPM 1 by 8 Connectors for Full Lanes Support
• Two Pieces SMP Connectors for Reference Clock
• USB-C PD connecor for Power
• PCIe_RST# Button
• Dimesion : 66.8mm x 80mm
