PCIe CEM CBB6.0 Test Fixture Set
Product ID: APT26016
Product Summary

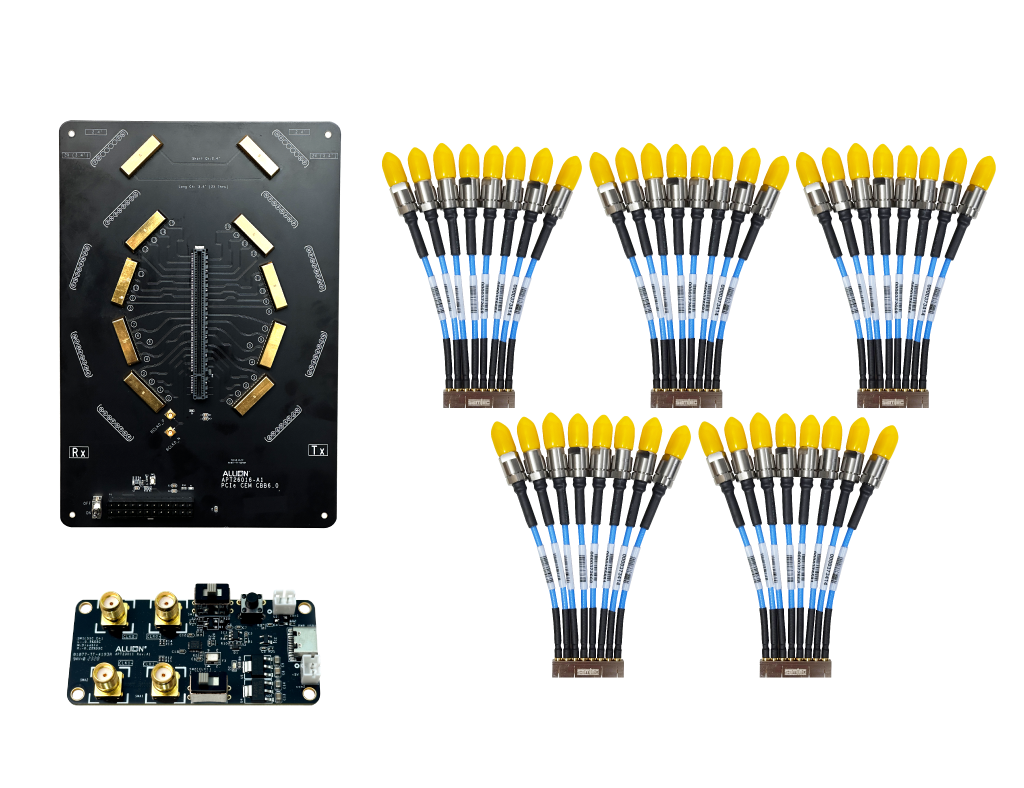

PCIe CEM CBB6.0 Test Fixture Set
- CIe CEM CBB6.0 測試治具套組包含以下項目：
- PCIeCEM CBB6.0 Test Fixture (Model Name: APT26016)
- Allion CMTS Board (Model Name: APT23011)
- SMPM 1 by 8 Cable Module*5
- 交期為下單後8-10週
Application
- 適用於 PCI Express 裝置與 AIC 擴充卡認證測試 for Tx/Rx (Gen1–Gen6)
Key Feature
- 適用於 CEM 電氣測試 for Tx & Rx
- 強化SMPM連結器設計，最高可支援 50Ghz
- 具彈性的線纜配件，提升安裝便利性
- 提供兩倍校正板 (不包含連接器)
Specification

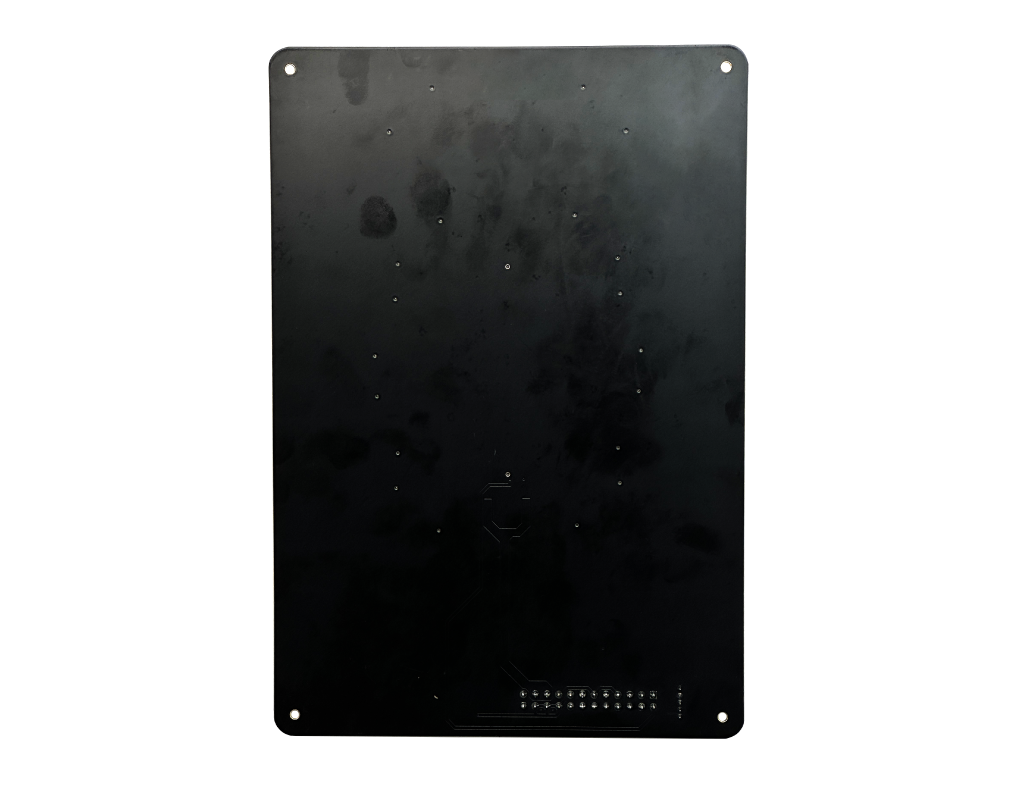

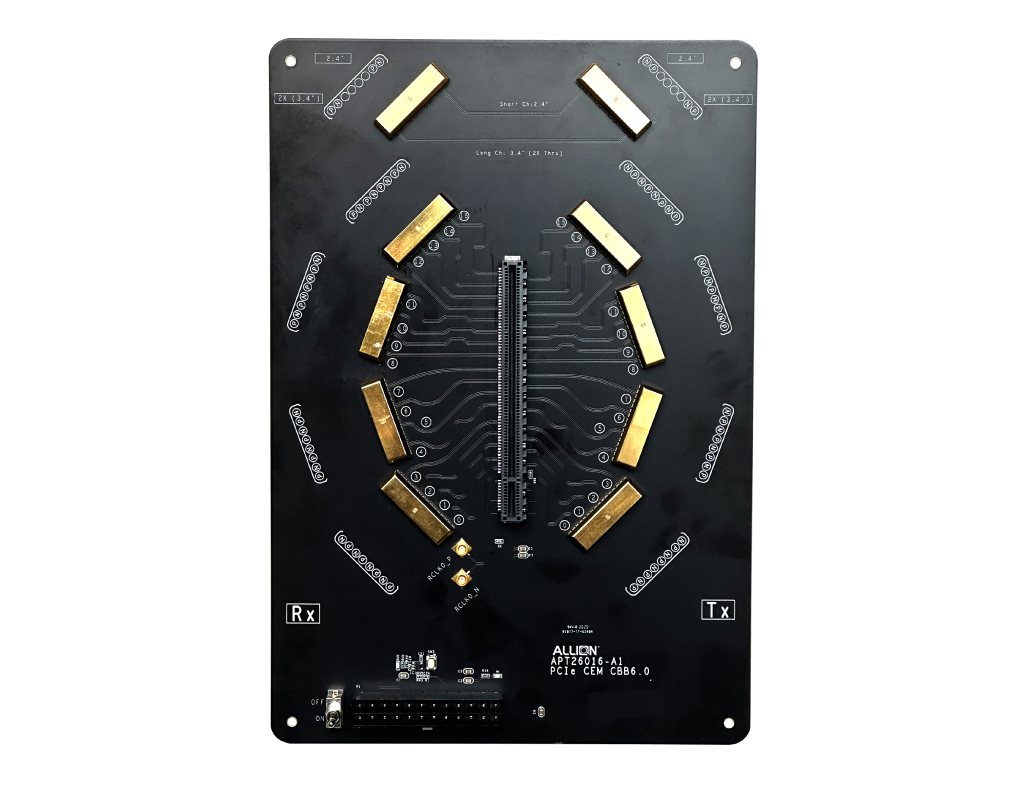

APT26016
- PCIe CEM x16 Receptacle Connector
- Eight SMPM 1 by 8 Connectors for Full Lanes Support
- Two Pieces SMP Connectors for Reference Clock
- Long Channel (2X Thru) & Short Channel De-embedded Structure
- ATX Power Supply 24Pins Connector
- PS_ON# Switch
- PCIe_RST# Button
- USB-A Connector for CMTS
- Dimesion : 24.35cm x 16.80cm
如有其他任何疑問或需求，歡迎隨時聯繫我們：service@allion.com
