PCIe OCP NIC3.0 CBB6.0 Test Fixture Set

Product Summary

PCIe OCP NIC3.0 CBB6.0 Test Fixture Set

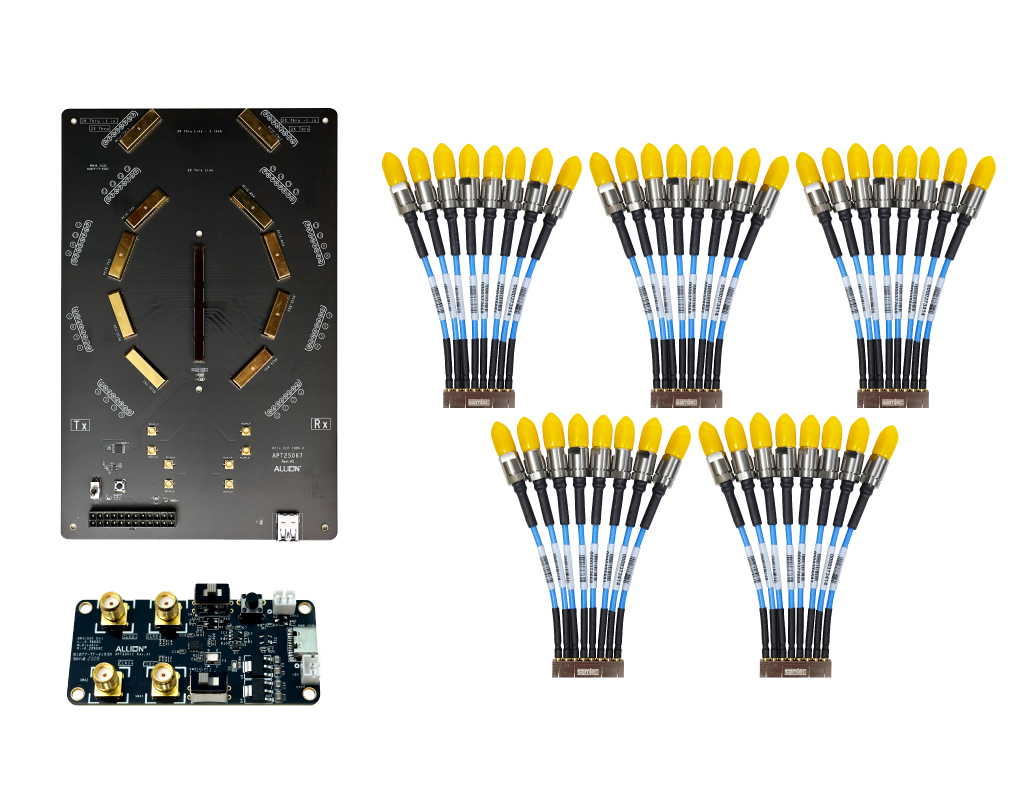

• PCIe OCP NIC3.0 CBB6.0 測試治具套組包含以下項目：

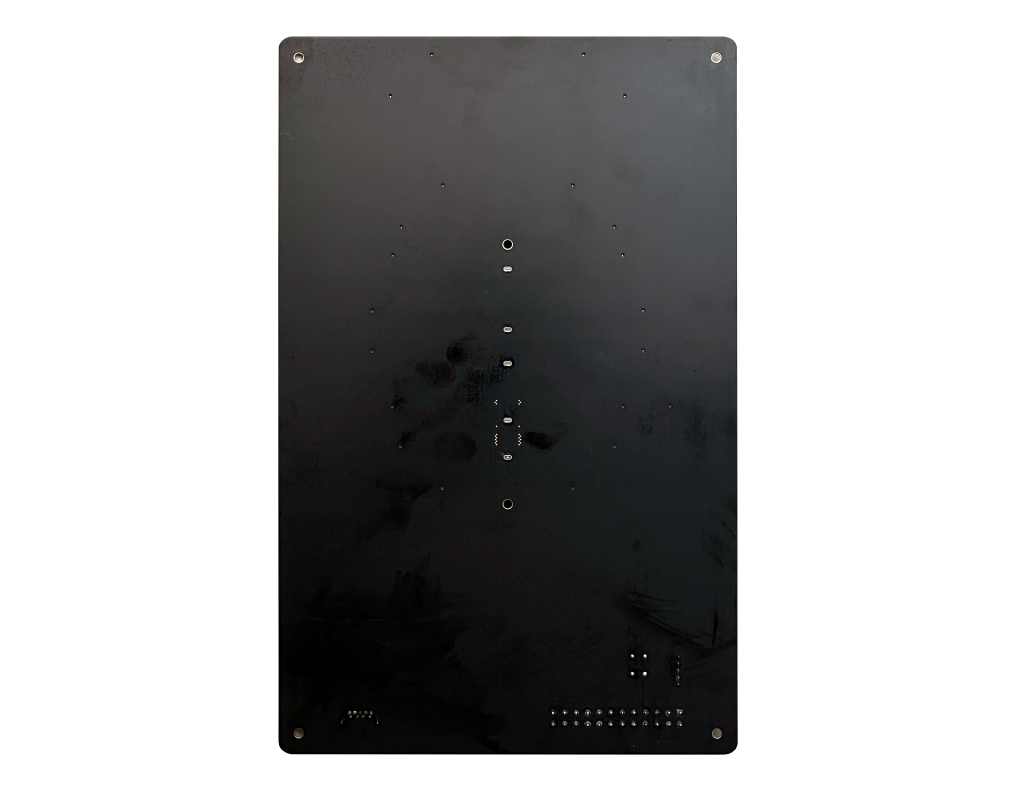

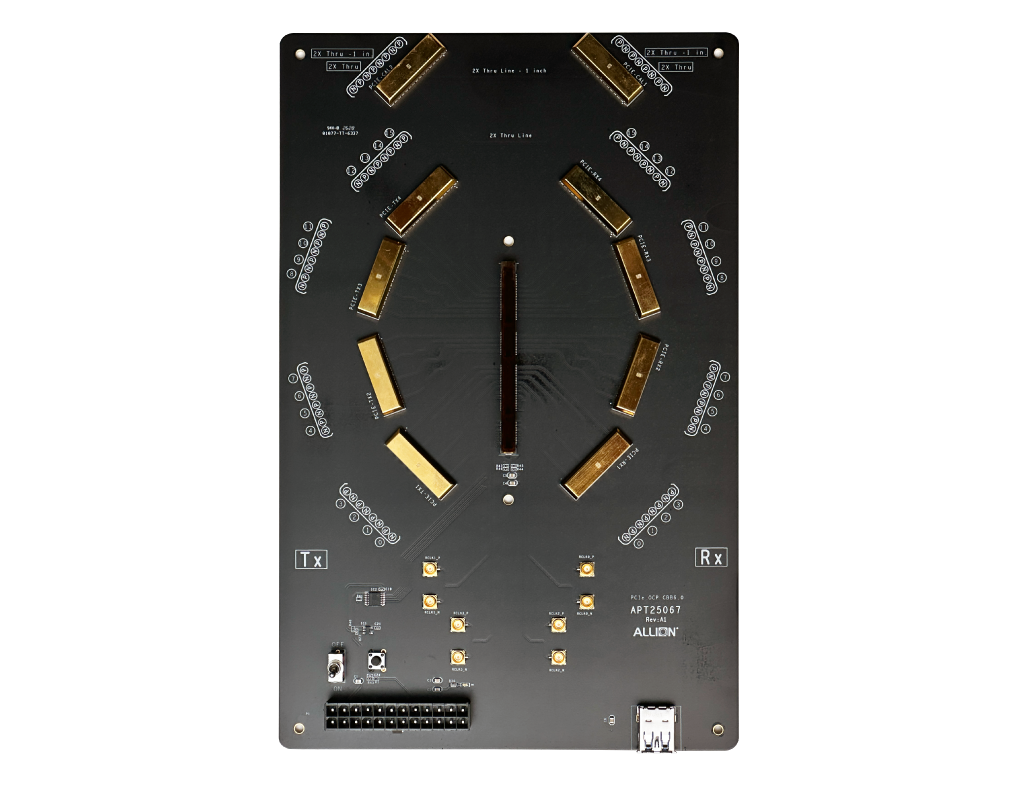

1. PCIe OCP NIC3.0 CBB6.0 Test Fixture (Model Name: APT25067)
2. Allion CMTS Board (Model Name: APT23011)
3. SMPM 1 by 8 Cable Module*5

• 交期為下單後8-10週

Application

• 適用於 PCI Express 裝置與 AIC 擴充卡認證測試 for Tx/Rx (Gen1–Gen6)

Key Feature

• 適用於 OCP NIC3.0 電氣測試 for Tx & Rx
• 強化SMPM連結器設計，最高可支援 50Ghz
• 具彈性的線纜配件，提升安裝便利性
• 提供兩倍校正板 (不包含連接器)

Specification

APT25067

• SFF-TA-1002/EDSFF 4C+Receptacle Connector
• Eight SMPM 1 by 8 Connectors for All 16 Lanes
• Eight Pieces SMP Connectors for Reference Clock
• Long Channel (2X Thru) & Short Channel De-embedded Structure
• ATX Power Supply 24Pins Connector
• PS_ON# Switch
• PCIe_RST# Button
• USB-A Connector for CMTS
• Dimesion : 23.20cm x 16.80cm
