OCP NIC3.0 PCIe CLB5.0 Test Fixture

Product ID: APT22005 / APT22009 / APT22010 / APT21135

Product Summary

OCP NIC3.0及EDSFF(Enterprise and Data Center SSD Form Factor) 4C/4C+ PCIe Gen4 /Gen5 測試治具組。
整合原本繁多的線材,設計線材模組化。

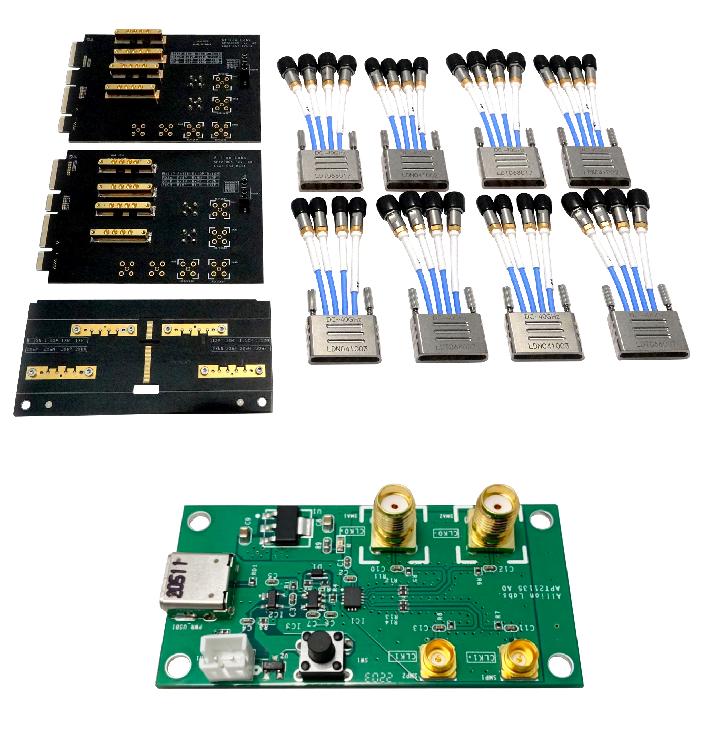

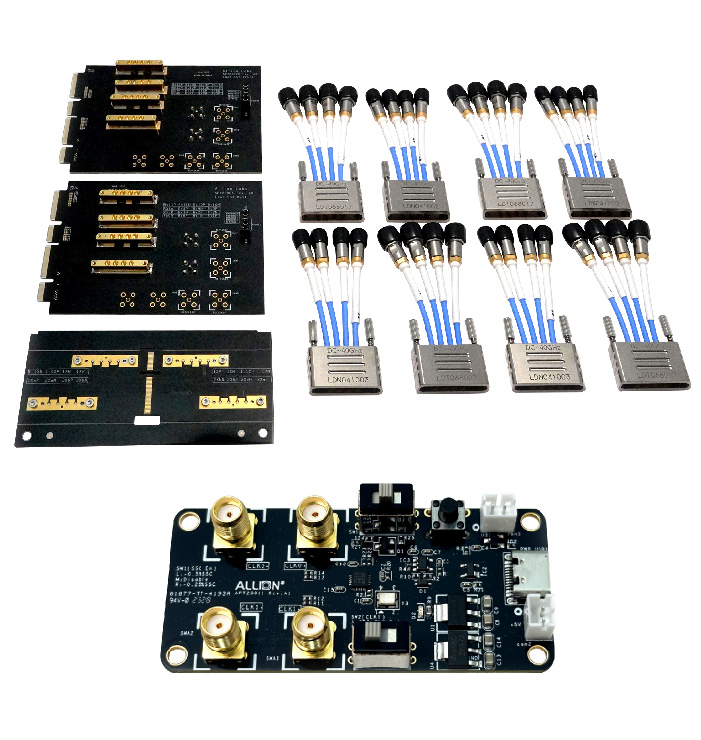

  • 此治具組包含:

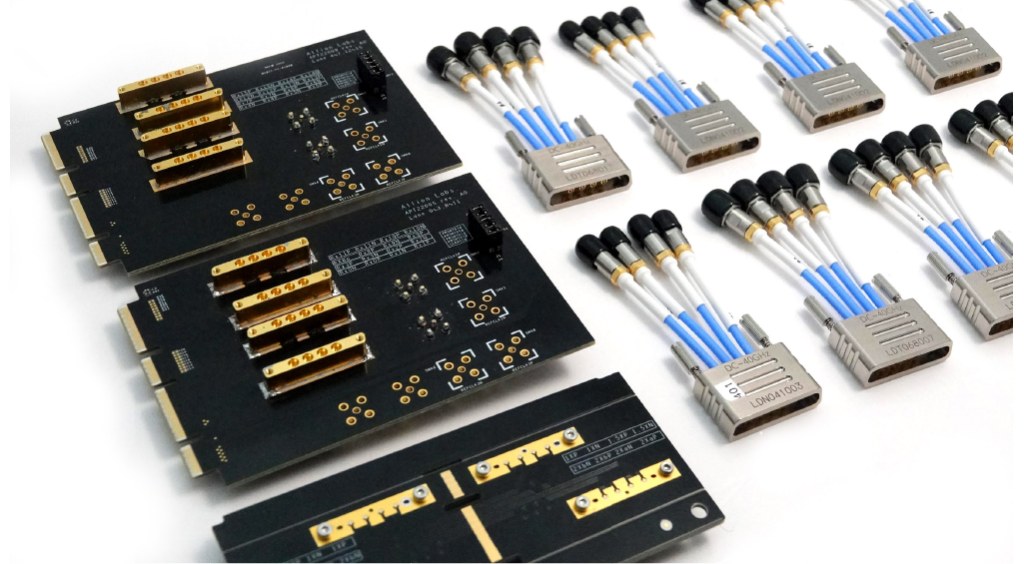

    1. OCP NIC3.0 CLB5.0-L0x8 (Model Name: APT22005)
    2. OCP NIC3.0 CLB5.0-L4x12 (Model Name: APT22009)
    3. OCP NIC3.0 CLB5.0-CAL (Model Name: APT22010)
    4. Allion CMTS Board (Model Name: APT21135)

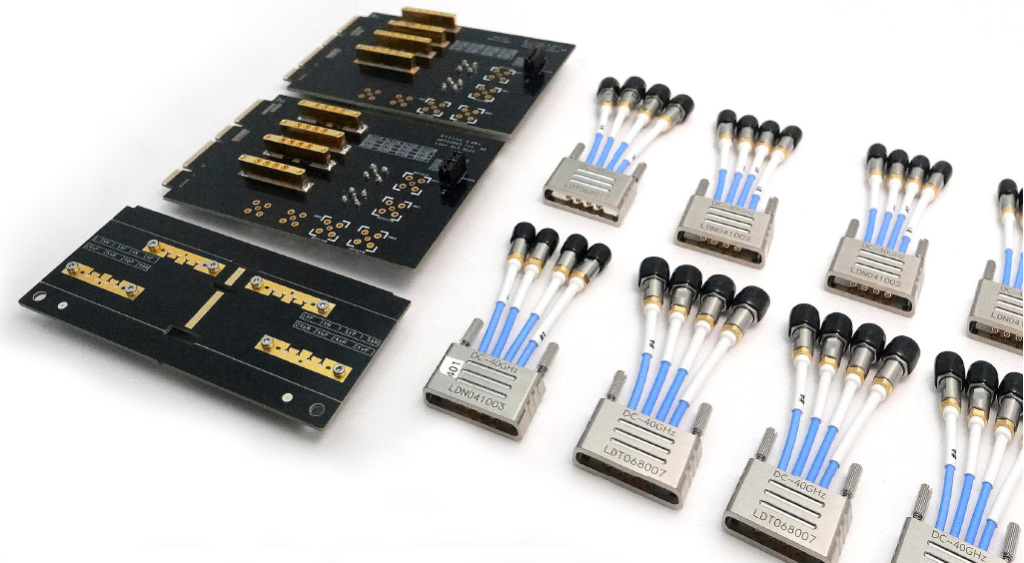

    5. Cable Module*8
  • 交期為收到訂單後6-8週

Application

  • OCP NIC3.0
  • EDSFF (Enterprise and Data Center SSD Form Factor) 4C/4C+
  • PCIe Gen4/Gen5 Test Fixture Set for Tx/Rx

Key Feature

  1. 適用於 EDSFF 規格 TA-1002 4C/4C+、OCP NIC3.0、GEN-Z、PECFF、SNIA Native NVME of Drive Tx & Rx.
  2. 強化SMPM連接器結構,可支援至40GHz
  3. 縮小尺寸更便於量測
  4. 線材模組化,安裝簡單化
  5. 兩倍校正線

Specification

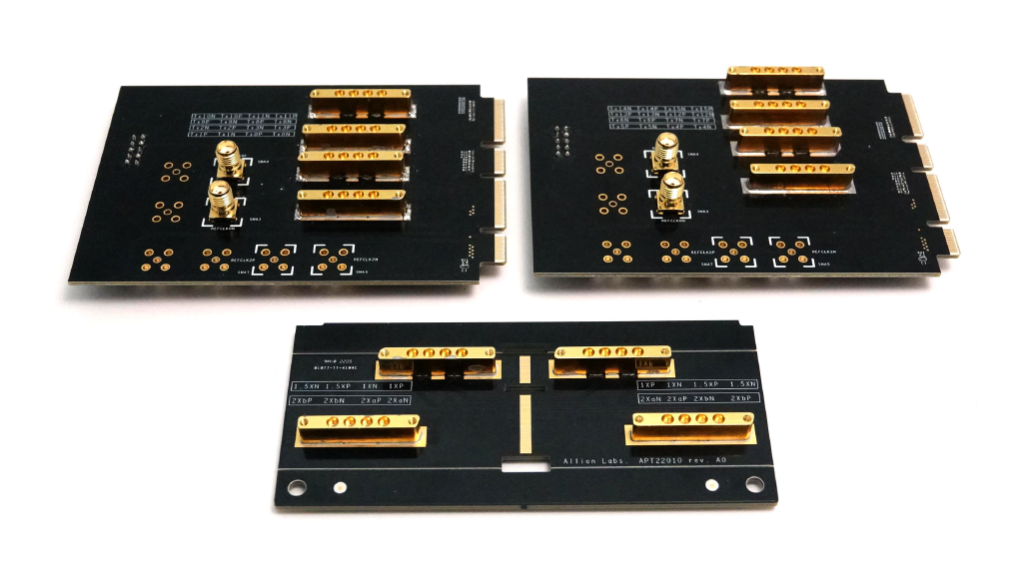

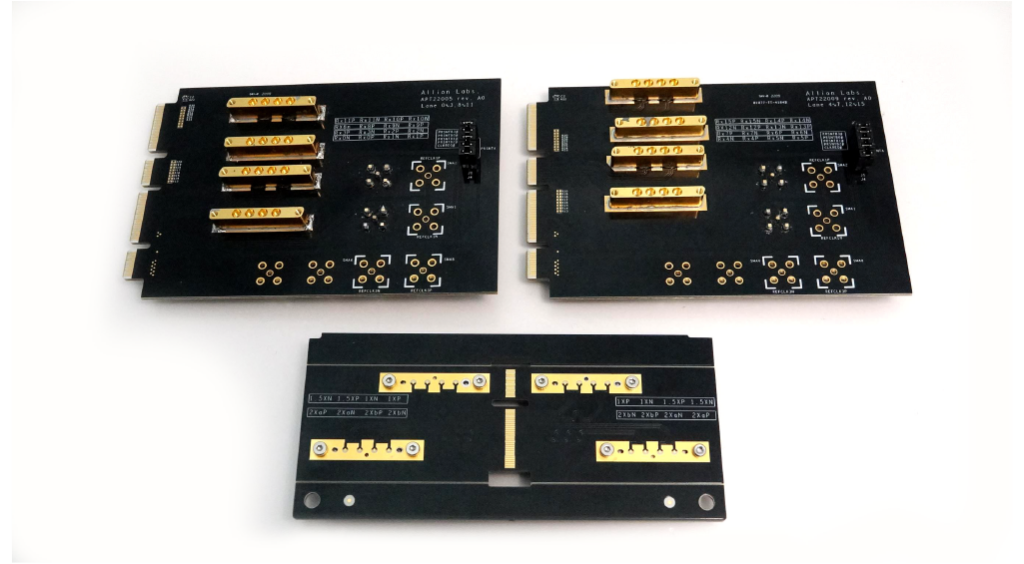

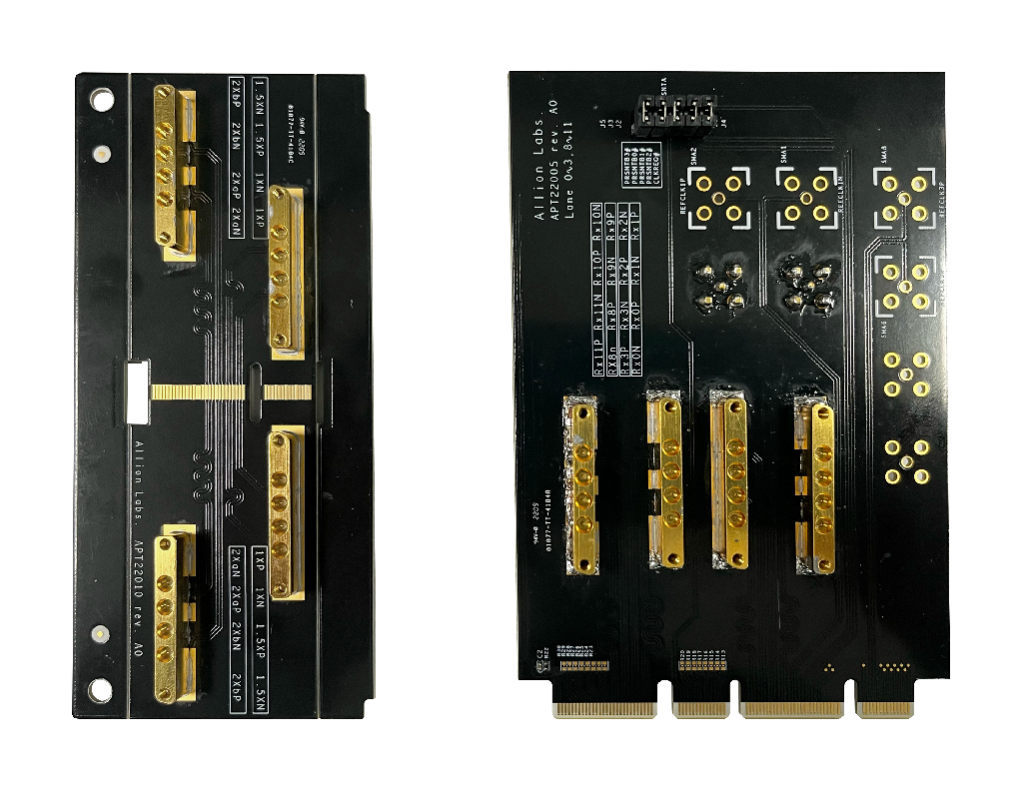

APT22005/APT22009
  • OCP NIC3.0或EDSFF C4/C4+ PCIe Golden Finger 連接至Host端以執行PCIe 測試
  • (APT22005) 8顆SMPM Connector用於Lane 0~3 & 8~11
    (APT22009) 8顆SMPM Connector用於Lane 4 ~ 7 & 12~15
  • 各2顆SMA Connector用於Reference Clock
  • 8組支援PC-2.92的SMPM 3 inches 線盒(每組連接2對differential signals)
APT22010
  • 2顆SMPM Connector 用於兩倍校正線

如有其他任何疑問或需求,歡迎隨時聯繫我們:service@allion.com
