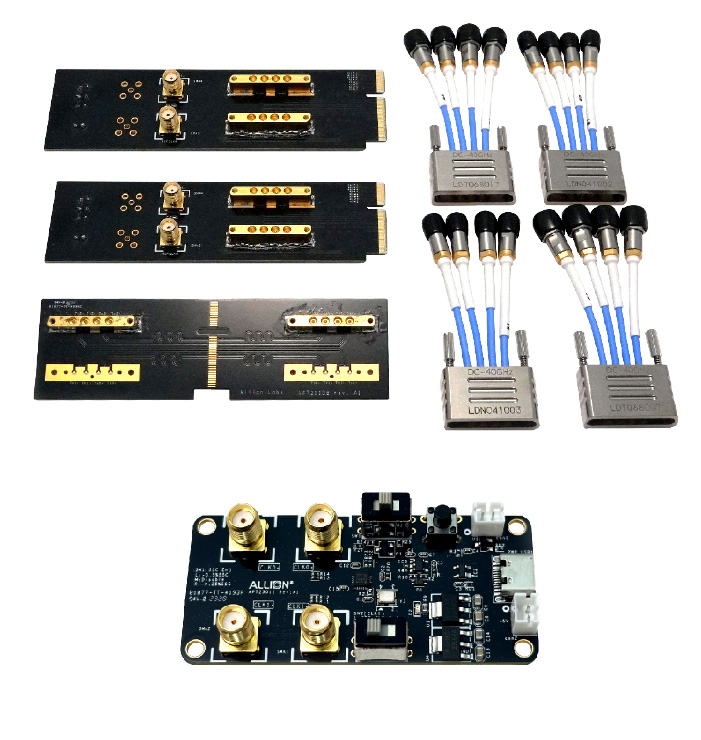

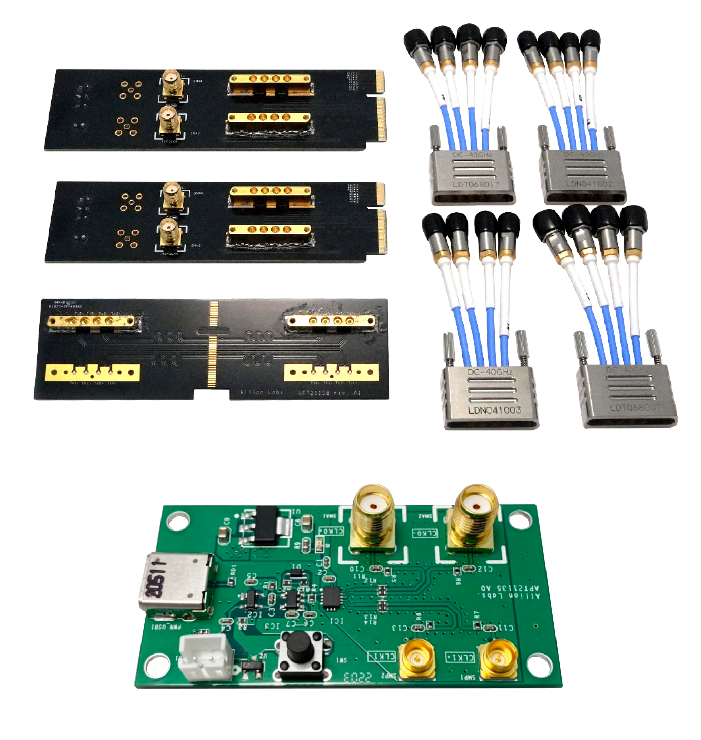

PCI Express EDSFF 1C/2C (E1/E3) Test Fixture
Product ID: APT21099 / APT21107 / APT21108
Product Summary
EDSFF(Enterprise and Data Center SSD Form Factor) 1C/2C PCIe Gne4 /Gen5測試治具組。
整合原本繁多的線材,設計線材模組化。

Application
EDSFF(Enterprise and Data Center SSD Form Factor) 1C/2C PCIe Gne4/Gen5 Test Fixture Set for Tx/Rx
Key Feature
- 適用於E1.S / E1.L(TA-1006/TA-1007) & E3(TA-1008)
- 強化SMPM連接器結構,可支援至40GHz
- 縮小尺寸更便於量測
- 線材模組化,安裝簡單化
- 兩倍校正線
Specification

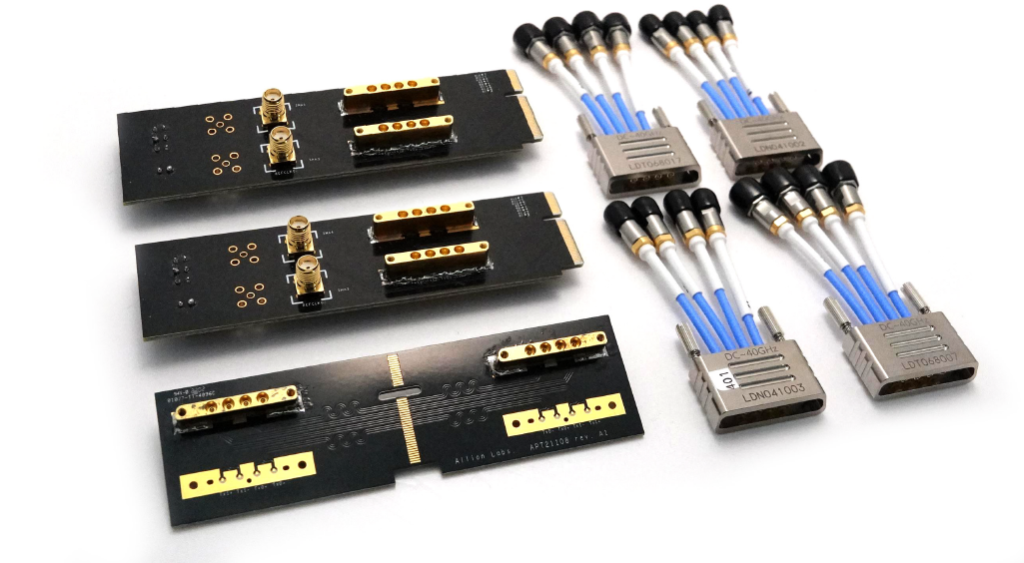

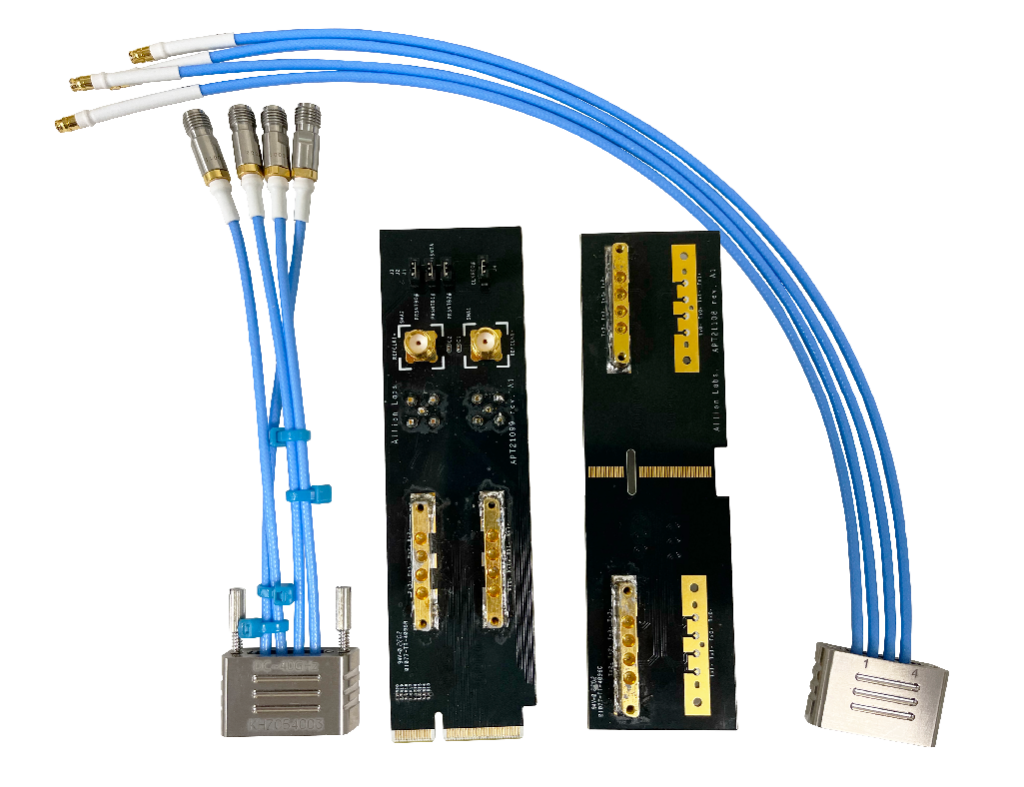

APT21099/APT21107
- EDSFF C1/C2 PCIe Golden Finger連接至Host端以執行PCIe 測試
- 4顆SMPM Connector 用於Lane 0~3(APT21099) & Lane 4 ~ 7(APT21107)
- 2顆SMA Connector用於Reference Clock

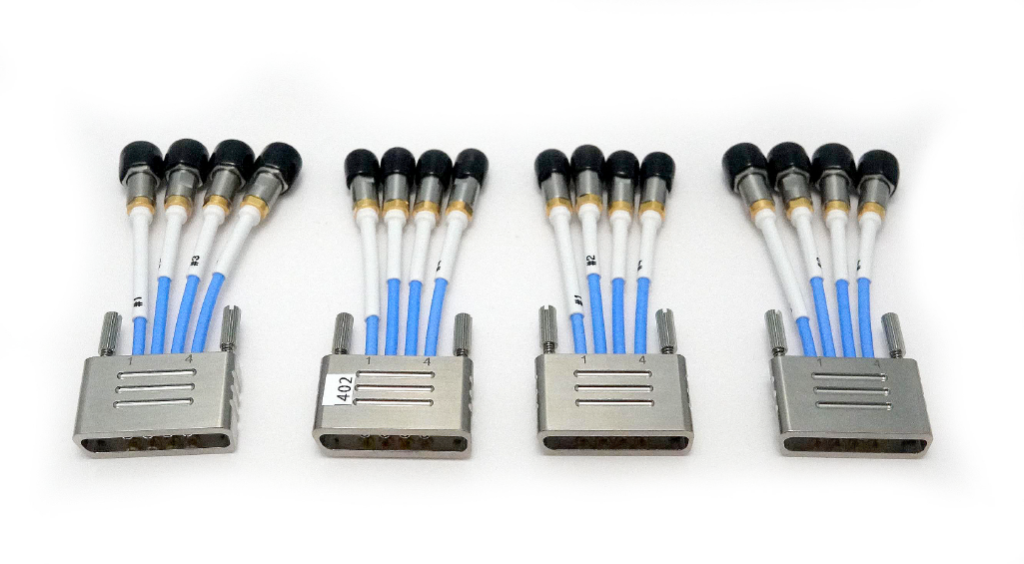

- 2條有SK Receptacle的SMPM 6 inch Cable (一套僅2對)
APT21108
- 4顆SMPM Connector 用於兩倍校正線
此款治具需搭配百佳泰PCIe測試方案,目前無單獨販售計畫,若有相關測試需求歡迎與我們聯繫
