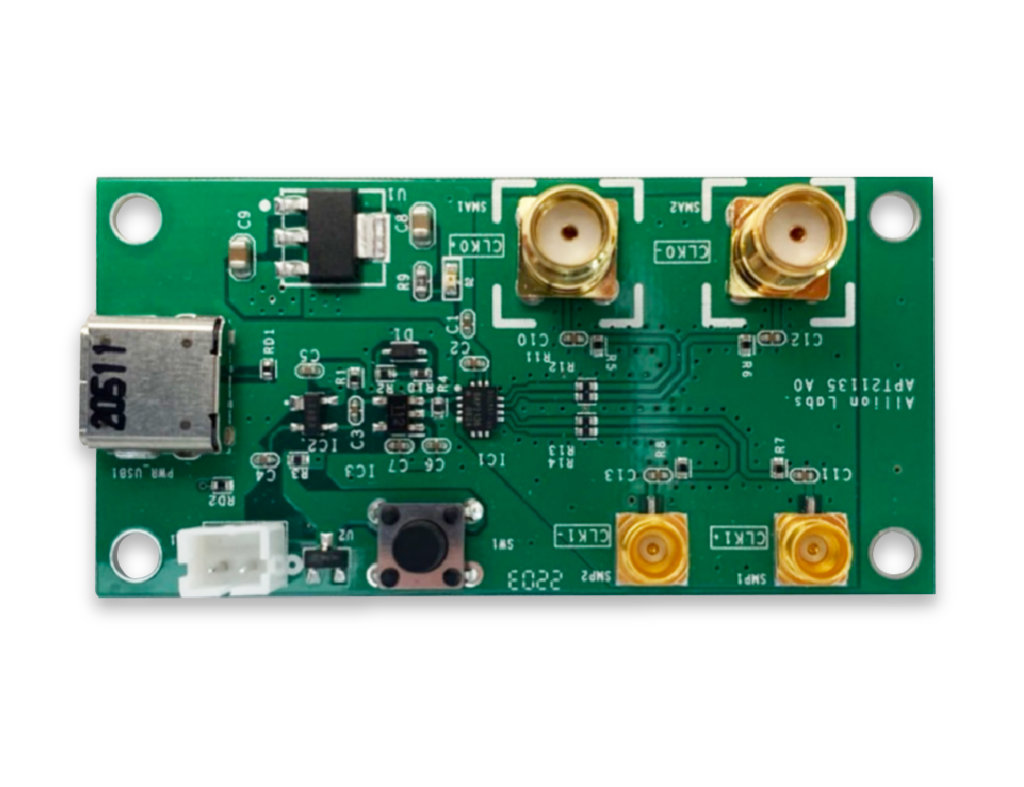

Allion CMTS Toggle Board
Product ID: APT21135
Product Summary
過往執行PCIe傳輸電氣測試時，必須透過繁複手續切換Rx信號後進入Compliance Mode才能進行檢測，費時、費工又費力。
現在只要使用百佳泰CMTS Toggle Board，便可透過SMP/SMA連接待測物的Rx信號，即可切換至Compliance Mode進行檢測，大幅減少檢測前的準備作業。
Application
PCIe Compliance Test
Key Feature
- Standalone Test Fixture
- PCI-SIG CMTS toggle function compatibility
Specification
- One USB Receptacle Connector for 5V Power
- Two SMP Connectors for PCIe Rx connection
- Two SMA Connectors for PCIe Rx connection
- One Push Button for Compliance Mode Toggle
- One 2.0mm Box Header for Reserved
- Dimension : 60.00 mm x 30.00 mm
